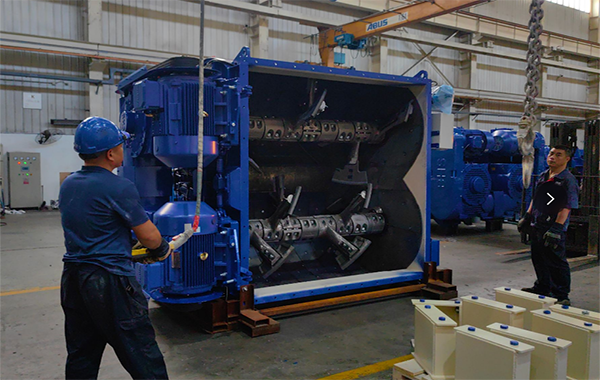

BHS concrete mixer

MODE	Dry materials Filling amount	Compacted concrete Discharge capacity Each batch	Maximum production of compacted concrete				Standard configuration Motor power	Maximum aggregate particle size
			Concrete tanker truck unloading		Unloading by dump trucks			Normal concrete	Hydraulic concrete
DKX 0.50	0,75 m³	0,5 m³	73 Cycles / hour	37 m³/h	73 Cycles / hour	37 m³/h	15 kW	64 mm	–
DKX 0.75	1,13 m³	0,75 m³	65 Cycles / hour	49 m³/h	65 Cycles / hour	49 m³/h	22 kW	64 mm	–
DKX 1.00	1,5 m³	1 m³	58 Cycles / hour	58 m³/h	60 Cycles / hour	60 m³/h	37 kW	64 mm	80 mm
DKX 1.25	1,88 m³	1,25 m³	53 Cycles / hour	66 m³/h	53 Cycles / hour	66 m³/h	45 kW	64 mm	125 mm
DKX 1.67	2,51 m³	1,67 m³	48 Cycles / hour	80 m³/h	49 Cycles / hour	82 m³/h	55 kW	64 mm	125 mm
DKX 2.00	3 m³	2 m³	49 Cycles / hour	98 m³/h	53 Cycles / hour	106 m³/h	65 kW	64 mm	150 mm
DKX 2.25	3,38 m³	2,25 m³	46 Cycles / hour	104 m³/h	50 Cycles / hour	113 m³/h	65 kW	64 mm	150 mm
DKX 2.50	3,75 m³	2,5 m³	48 Cycles / hour	120 m³/h	56 Cycles / hour	140 m³/h	75 kW	64 mm	150 mm
DKX 2.75	4,13 m³	2,75 m³	46 Cycles / hour	127 m³/h	55 Cycles / hour	151 m³/h	2 x 45 kW	64 mm	150 mm
DKX 3.00	4,5 m³	3 m³	44 Cycles / hour	132 m³/h	53 Cycles / hour	159 m³/h	2 x 55 kW	64 mm	150 mm
DKX 3.33	5 m³	3,33 m³	41 Cycles / hour	137 m³/h	50 Cycles / hour	167 m³/h	2 x 65 kW	64 mm	150 mm
DKX 3.50	5,25 m³	3,5 m³	42 Cycles / hour	147 m³/h	52 Cycles / hour	182 m³/h	2 x 55 kW	64 mm	160 mm
DKX 4.00	6 m³	4 m³	39 Cycles / hour	156 m³/h	49 Cycles / hour	196 m³/h	2 x 65 kW	64 mm	160 mm
DKX 4.50	6,75 m³	4,5 m³	37 Cycles / hour	167 m³/h	51 Cycles / hour	230 m³/h	2 x 75 kW	64 mm	160 mm
DKX 5.00	7,5 m³	5 m³	35 Cycles / hour	175 m³/h	50 Cycles / hour	250 m³/h	2 x 90 kW	64 mm	160 mm
DKX 6.00	9 m³	6 m³	31 Cycles / hour	186 m³/h	48 Cycles / hour	288 m³/h	2 x 110 kW	64 mm	160 mm
DKX 7.00	10,5 m³	7 m³	28 Cycles / hour	196 m³/h	44 Cycles / hour	308 m³/h	4 x 75 kW	64 mm	160 mm
DKX 8.00	12 m³	8 m³	26 Cycles / hour	208 m³/h	43Cycles / hour	344 m³/h	4 x 90 kW	64 mm	160 mm
DKX 9.00	13,5 m³	9 m³	24 Cycles / hour	216 m³/h	43 Cycles / hour	387 m³/h	4 x 110 kW	64 mm	180 mm

Achieving stable high mixing uniformity in an extremely short mixing time

Quickly improve the uniformity of the mixture through sufficient material exchange
Each mixing cycle ensures stable consistency and uniformity

Optimal energy utilization rate

Achieving high stirring performance at low speeds
Maintain the particle structure of various formula ingredients
Due to the short mixing time, optimized agitator, efficient driving device, and extremely low energy consumption

Design decisions for low wear only

The low-speed and compact structure enables low wear of the mixing tool and mixing tank liner
Compared to disc or planetary mixers, wear is significantly reduced
Optimize the design of all vulnerable parts

Efficient concrete production

Completely crush the adhesive in a short period of time
Can save adhesive
Distribute the added materials and additives evenly and quickly throughout the entire mixture
Can handle small batches with a rated filling volume exceeding 10%
Future Safety of Modern Concrete Formulas
Can perform mixing and stirring cycles (slow fast slow)
