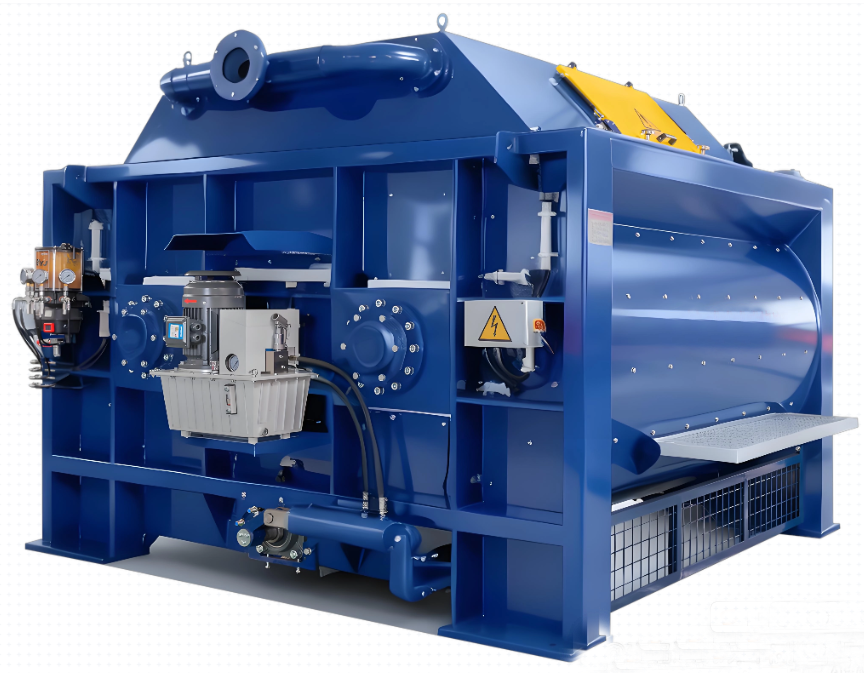

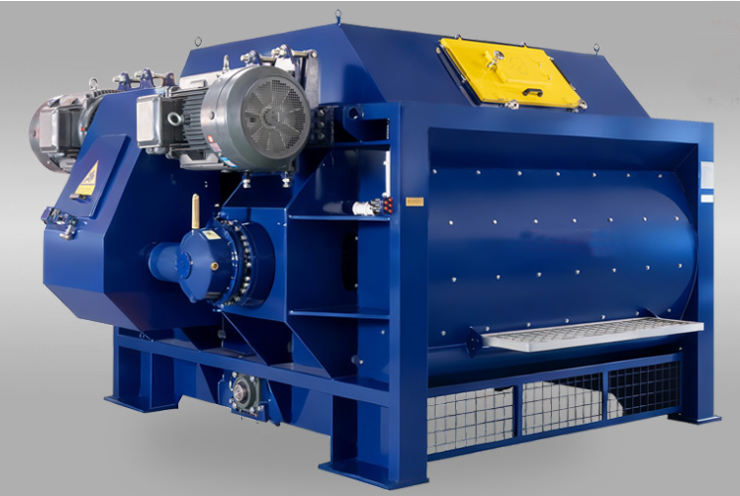

JS concrete mixer is a widely used high-efficiency concrete mixer that uses motorized discharge and can be used in conjunction with a dump truck. It mainly consists of a mixing drum, hopper loading frame, winding mechanism, mixing drum, mixing blades, mixing shaft, mixing arm, frame, discharge mechanism, oil and water supply system, and electrical system. Suitable for mixing plastic, dry hard, lightweight aggregate concrete, as well as various mortar and mortar, it is an ideal machine for various construction sites.
Widely used in large and medium-sized prefabricated component factories, as well as industrial and civil construction projects such as highways, bridges, water conservancy, docks, etc
| Feed capacity(L) | 1500 | 1750 | 2250 | 3000 | 3750 | 4500 | 5300 | 6000 | 6750 |
| Discharge capacity(L) | 1000 | 1250 | 1500 | 2000 | 2500 | 3000 | 3500 | 4000 | 4500 |
| Maximum particle size(mm) | 80/100 | 80/100 | 80/100 | 80/100 | 80/100 | 80/120 | 80/120 | 80/150 | 80/150 |
| Weight(t) | 5.2 | 5.5 | 5.8 | 7.5 | 8.5 | 9.2 | 9.6 | 12.2 | 12.5 |
| Power(KW) | 18.5x2 | 22x2 | 30x2 | 37x2 | 45x2 | 55x2 | 55x2 | 75x2 | 75x2 |

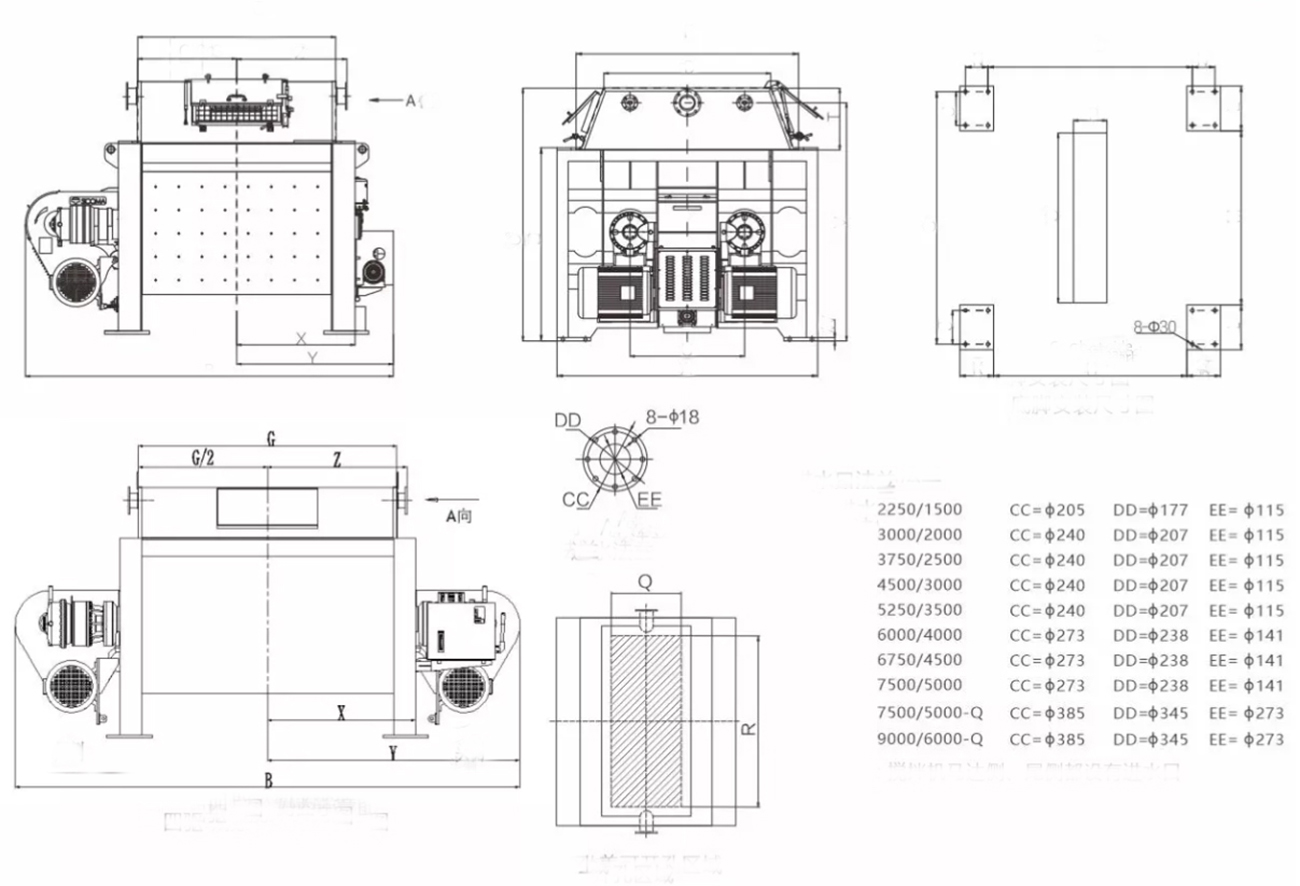

| Size(mm) | 2810x2000X1920 | 3020X2000X1920 | 3230X2000X1920 | 3460X2320X2140 | 3670X2320X2140 | 3880X2600X2200 | 4100X2600X2200 | 4670X2600X2200 | 4890X2600X2200 |
| Mix time(s) | ≤30 | ≤30 | ≤30 | ≤30 | ≤30 | ≤30 | ≤30 | ≤30 | ≤30 |

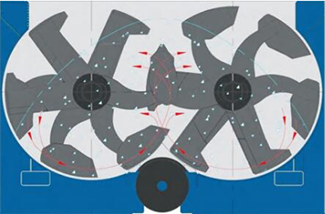

 3D mixing technology Through unique spatial motion design, multi-directional three-dimensional mixing of materials is achieved, solving the problems of unevenness and high energy consumption in concrete production. Suitable for construction, infrastructure and other fields, helping enterprises achieve efficient and energy-saving production. |

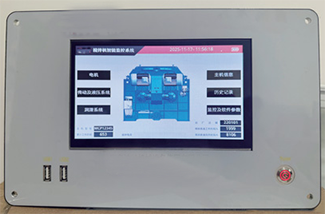

 Intelligent monitoring system Equipped with an intelligent monitoring system to track the real-time operation status of the mixer, automatically identify fault alarms, and promptly push maintenance reminders; Support remote technical services, effectively reducing equipment downtime and extending service life. |

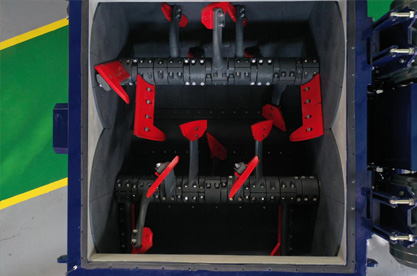

 Efficient convective motion driven by a special mixing device Optimize blade phase, angle, and shape settings to achieve fast and efficient material convection circulation with smaller loads, while minimizing unnecessary vibrations to a greater extent. |

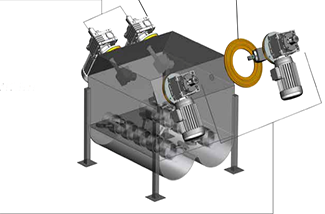

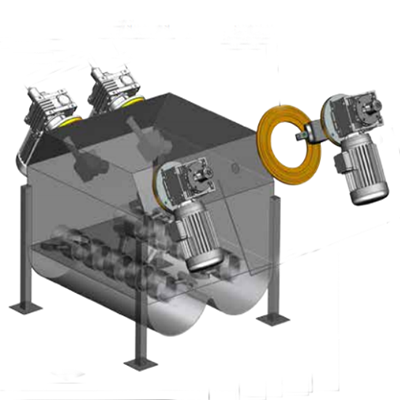

 Automatic high-pressure cleaning system Four sets of 360 ° high-pressure cleaning nozzles are installed at the four corners of the concrete mixer. After production, the interior of the mixer is cleaned with high-pressure cleaning without dead corners to reduce shaft holding and adhesion problems. |
