Details

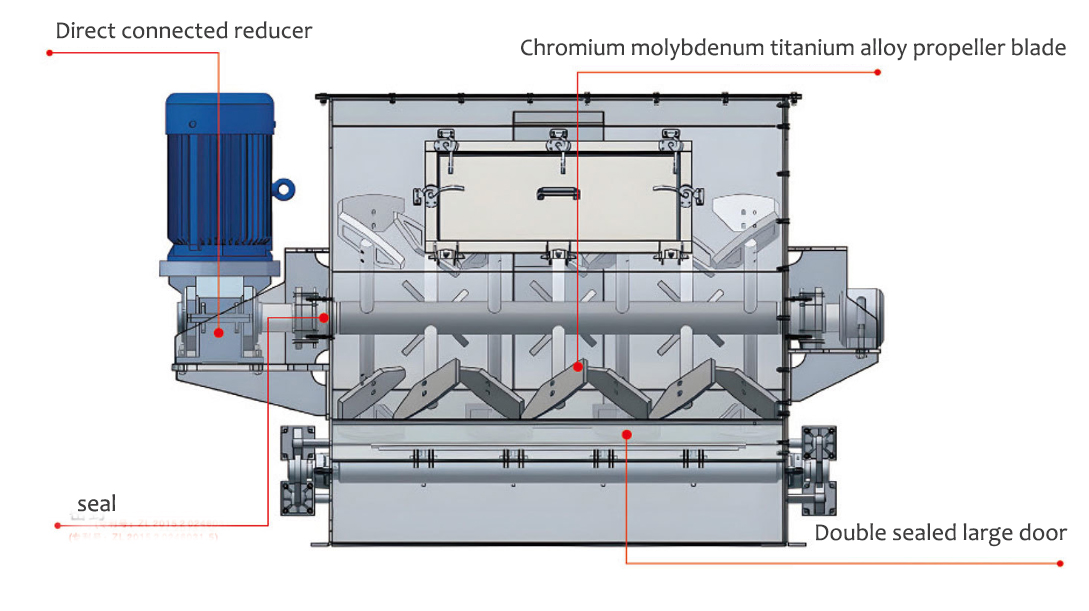

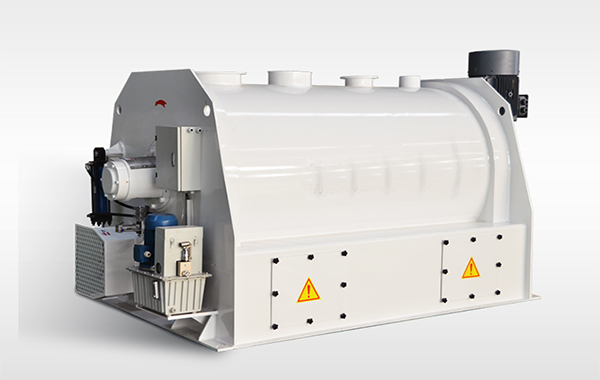

JINHENG high-speed plow blade mixer: It is a plow blade mixer developed based on our company's long-term production experience and combined with foreign technology. The new model of the improved machine. The hybrid components, flying knives, and cylinders made of wear-resistant materials extend the service life of these components. The reliable wide pneumatic gate discharge method shortens the discharge time and reduces residue. This type of machine is widely used in industries such as building materials, special mortar, floor and wall coatings.
Technical Parameter
| Type |
DZW1500 |
DZW2000 |
DZW3000 |
DZW3500 |
DZW4000 |
DZW5000 |
| Full volume |
1500L |
2000L |
3000L |
3500L |
4000L |
5000L |
| Volume coefficient |
0.4-.07 |
0.4-.07 |
0.4-.07 |
0.4-.07 |
0.4-.07 |
0.4-.07 |
| Stirring power |
22kw |
30kw |
37kw |
45kw |
55kw |
75kw |
| Unloading power |
3kw |
3kw |
3kw |
3kw |
3kw |
3kw |
| Weight |
2500kg |
3000kg |
3800kg |
4300kg |
5000kg |
5800kg |
Highlights
- Fast mixing speed, mixing time for each batch: 3-5 minutes, high mixing uniformity;
- Materials with significant differences in physical properties such as density, particle size, and shape are less prone to segregation during mixing;
- The mixer is equipped with a high-speed rotating flying knife group, which can quickly and effectively disperse fiber materials Low power consumption per ton, 60% lower than ordinary horizontal screw belt mixers;
- Widely applicable, manganese steel, carbon steel, semi stainless steel, and all stainless steel are used according to user needs, especially suitable for mixed production of high-precision materials.
