Details
On the premise of meeting the mixing quality, the mixing time should be as short as possible. In raw materials, harmful substances only include mud, powder, and certain impurities in sand and stone. The mud powder particles in sand and gravel are more easily differentiated over time during the process of strong mixing with water. And this differentiation is at a geometric level, which has a great impact on the adsorption and destructive properties of the admixture and water that have already been integrated with the adhesive material, and has a significant impact on the state and performance of the concrete.

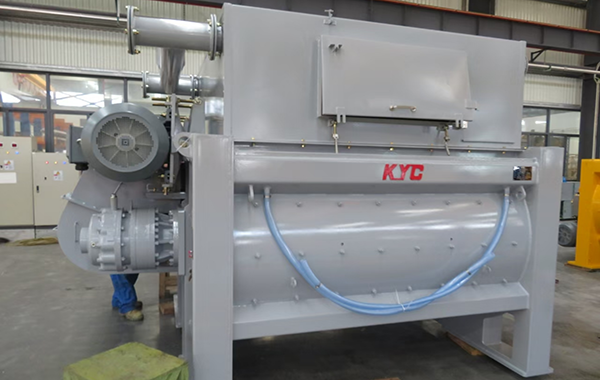

The speed of the KYC mixer has been increased to 30 revolutions per minute compared to the usual 24-26 revolutions per minute, and the number and angle of the mixing arms and blades have been reasonably planned to achieve rapid and uniform exchange of materials between the two mixing cycles, thereby improving the uniformity of the concrete.
Technical Parameter
| Model |
NEX1250 |
NEX1500 |
NES2000 |
NEX3000 |
NEX4000 |
NEX4500 |
| Capacity |
1.25m³ |
1.5m³ |
2.0m³ |
3.0m³ |
4.0m³ |
4.5m³ |
| Motor |
22*2 |
30*2 |
37*2 |
55*2 |
75*2 |
75*2 |
| Size |
2120*1890*1600 |
2120*1890*1600 |
2560*2020*1500 |
2560*2020*1700 |
2560*2160*1700 |
2960*2160*1850 |
| Weight |
500 |
6000 |
9000 |
10000 |
11000 |
13000 |
| Mixing tools STD/OPT |
J |
J |
J/E |
J/E |
J/E |
J |
Highlights
1. Quickly unload the material
Using a wide body semi-circular roller discharge door, the cylinder type discharge can be completely emptied within 10 seconds without any residue.
2. The whole machine is more wear-resistant
The blades and liners are made of high standard 27Cr, which improves wear resistance and reduces the number of replacements.
3. More reliable shaft end
Adopting a floating sealing ring method, it is simple, reliable, easy to maintain and replace, greatly improving its service life.
4. More energy-efficient and environmentally friendly
The elliptical curved mixing arm forms a three-dimensional shape with the main arm and the blade surface, and the mixing blades are arranged in a 60 degree intermittent spiral streamline shape. The frontal area is reduced, which is conducive to smooth shear of concrete and reduces the resistance of concrete to the mixing arm, thereby reducing the load and achieving energy saving.
