Belt conveyor

Mode	Conveying capacity (t/h)	Bandwidth	Belt speed	Conveying length	Obliquity	roller diameter	Roller diameter	Installed power
DTL50/10/30	100	650	1.63	400	±5°	Φ450	Φ89	30
DTL65/20/2Χ30	200	650	1.63	400	±5°	Φ450	Φ89	2Χ30
DTL65/20/2Χ37	200	650	1.63	500	±5°	Φ450	Φ89	2Χ37
DTL65/10/2Χ45	100	650	1.63	1000	±5°	Φ500	Φ89	2Χ45
DTL65/20/2Χ40	200	650	2	600	±5°	Φ500	Φ89	2Χ40
DTL80/30/2Χ30	300	800	1.63	500	±5°	Φ450	Φ89	2Χ30
DTL80/40/2Χ37	400	800	1.63	600	±5°	Φ450	Φ89	2Χ37
DTL80/40/2Χ45	400	800	1.63	600	±5°	Φ500	Φ89	2Χ45
DTL80/40/2Χ40	400	800	2	500	±5°	Φ500	Φ89	2Χ40
DTL80/40/2Χ55	400	800	2	700	±5°	Φ500	Φ89	2Χ55
DTL80/40/2Χ75	400	800	2	1000	0-2°	Φ630	Φ89	2Χ75
DTL80/40/2Χ90	400	800	2	1200	0-2°	Φ630	Φ89	2Χ90
DTL80/40/2Χ110	450	800	2	1300	0-2°	Φ630	Φ89	2Χ110
DTL100/50/2Χ40	500	1000	2	300	±5°	Φ500	Φ89	2Χ40
DTL100/50/2Χ55	500	1000	2	300	±5°	Φ500	Φ108	2Χ55
DTL100/63/2Χ75	630	1000	2	700	0-2°	Φ630	Φ108	2Χ75
DTL100/50/2Χ90	500	1000	2	1000	0-5°	Φ630	Φ108	2Χ90
DTL100/65/2Χ110	650	1000	2	1000	0-3°	Φ630	Φ108	2Χ110
DTL100/60/355S	600	1000	2.5	400	15°	Φ1000	Φ108	355S
DTL100/75/160S	750	1000	3	150	15°	Φ830	Φ108	160S
DTL100/90/185S	900	1000	3	150	15°	Φ830	Φ108	185S
DTL100/40/2Χ220S	400	1000	1.9	1000	0-14°	Φ830	Φ133	2Χ220
DTL100/75/2Χ220	750	1000	2.5	1100	±2°	Φ830	Φ108	2Χ220
DTL100/75/2Χ400	750	1000	2.5	2000	2-3°	Φ1000	Φ133	2Χ400
DTL120/80/2Χ90	800	1200	2.5	600	0-1°	Φ800	Φ133	2Χ90
DTL120/120/2Χ132	1200	1200	2.5	600	1-0°	Φ830	Φ133	2Χ132
DTL120/120/2Χ200	1200	1200	3.15	1100	±3°	Φ1030	Φ133	2Χ200
DTL120/150/2Χ315	1500	1200	3.15	1000	±3°	Φ1030	Φ133	2Χ315
DTL120/120/2Χ280S	1200	1200	3.15	600	0-14°	Φ1280	Φ133	2Χ280
DTL120/150/2Χ630S	1500	1200	3.15	1000	14-15°	Φ1280	Φ133	2Χ630
DTL120/120/2Χ400	1200	1200	3.15	1500	2-3°	Φ1280	Φ133	2Χ400
DTL120/120/2Χ500	1200	1200	3.15	2000	2-3°	Φ1280	Φ133	2Χ500
DTL120/200/3Χ630	2000	1200	3.15	1200	2-3°	Φ1280	Φ133	3Χ630
DTL140/200/2Χ315	2000	1400	3.15	1100	±3°	Φ1030	Φ159	2Χ315
DTL140/250/3Χ400S	2500	1400	3.15	600	14-15°	Φ1280	Φ159	3Χ400
DTL140/160/2Χ355	1600	1400	3.15	800	2-3°	Φ1280	Φ159	2Χ355
DTL140/200/2Χ500	2000	1400	3.15	900	2-3°	Φ1280	Φ159	2Χ500

1. Large conveying capacity: Belt conveyor has a large conveying capacity, which can meet the transportation needs of large-scale materials.
2. Strong applicability: This conveyor can combine horizontal, inclined, and vertical conveying, with a wide range of applications and the ability to adapt to various conveying environments.

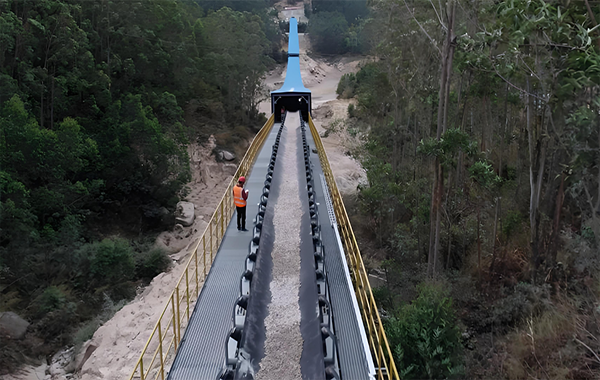

3. Long conveying distance: By using multiple conveyor combinations, long-distance material transportation can be achieved.
4. Strong load-bearing capacity: The conveyor belt has a high load-bearing capacity and can withstand materials with large weights.
5. Small footprint: Compared with other types of conveyors, DTII belt conveyors have a smaller footprint, which is beneficial for reducing space occupation.
6. Simple structure: The structure of this conveyor is relatively simple, easy to maintain, and reduces the cost of use.
7. Low energy consumption: Due to the use of efficient transmission devices and optimized structural design, the Belt conveyor has low energy consumption and meets energy-saving requirements.
8. Low maintenance cost: The components of this conveyor have strong universality and are easy to maintain, reducing maintenance costs.

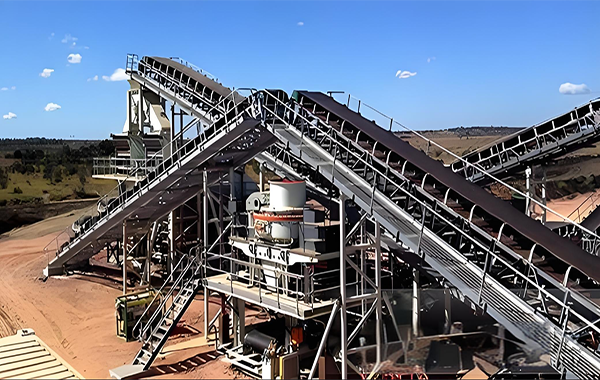

In summary, Belt conveyor is an efficient, reliable, and adaptable conveying equipment suitable for multiple industries such as coal, mining, ports, power plants, building materials, metallurgy, etc. It can meet the conveying needs of various materials.
