pulse dust collector

Parameter/Model	JCL25	JCL30	JCL48	JCL64
Filter area（m2）	18	24	36	48
Particle concentration （g/ m3）	＜15	＜15	＜15	＜15
Filtration velocity（m/min）	2-4	2-4	2-4	2-4
Filter air volume（m3/h）	2160-4320	2160-4320	4320-8640	5400-10800
Resistance（H2omm）	120-150	120-150	120-150	120-150
Weight(KG) Weight of main Body(kg)	350	500	620	760
Dimensions(L×W×H)	1100x1100x1920	1270x1100x2665	1600x1300x2665	1600x1600x2665

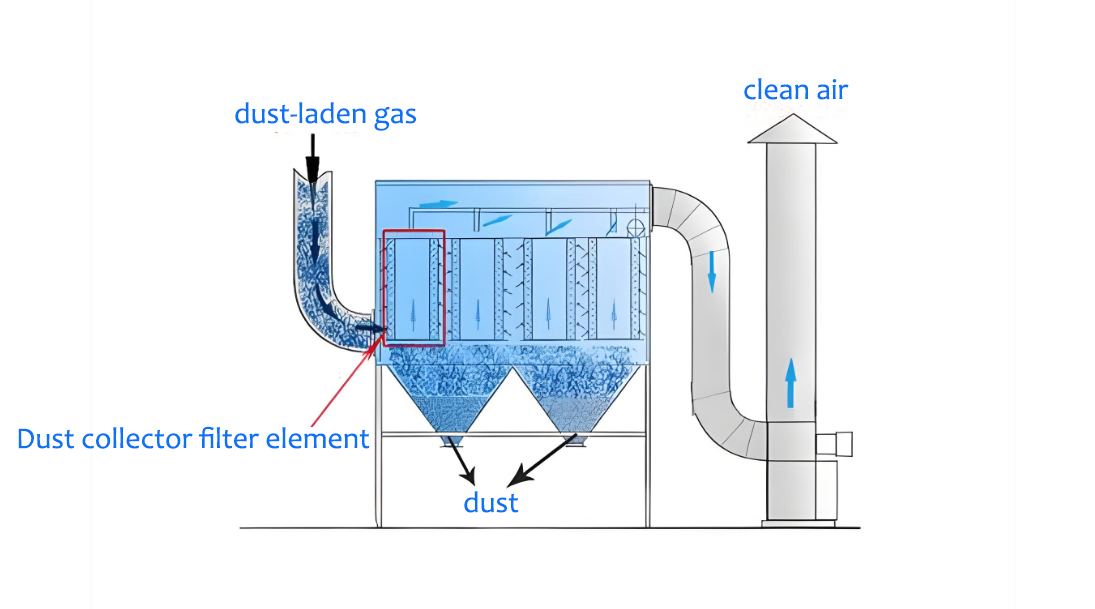

Pulse dust collectors are used for single or multiple point dust removal, as well as in places where dust points are not frequently fixed (such as during welding). Dust containing gas enters the box and is filtered by a flat cloth bag filter. The dust is trapped on the outer surface of the filter bag, and the purified gas enters the fan through the filter bag. It is sucked in by the fan and directly discharged into the indoor environment (or can be connected to the outdoor environment). As the filtration time of the single machine dust collector increases, the dust adhering to the outer surface of the dust removal filter bag also increases, and the resistance of the filter bag also increases accordingly, thereby affecting the dust removal effect. A self-control dust removal mechanism is used for timed vibration and cleaning, or a manual dust removal mechanism is used to automatically vibrate and clean the dust for tens of seconds after stopping, so that the dust adhering to the outer surface of the filter bag is shaken off, and the dust falling into the dust collection container (drawer) is manually pulled out
