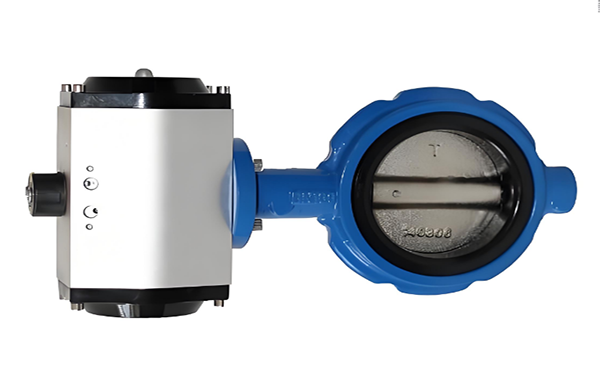

Pneumatic butterfly valve

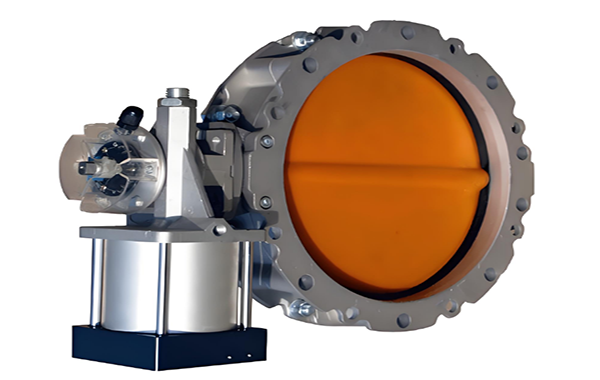

The JINHENG series pneumatic butterfly valve is an essential tool for controlling the feeding and pneumatic conveying of powder and granular materials in powder silos and powder scales. The valve switch adopts gear and rack transmission, with high torque and long service life. Standard configuration dedicated cylinder, with switch signal output on the dedicated cylinder, which can be far away. Cheng controls the opening and closing of the butterfly valve.
This butterfly valve adopts an aluminum shell, which is lightweight and sturdy. The valve plate is made of aluminum alloy material, and the valve plate is made of wear-resistant polymer material with steel plate core and food grade stainless steel material, which has good wear resistance. The sealing rubber ring is made of nitrile rubber, which has good sealing performance. It is equipped with a dedicated cylinder as standard and can also be equipped with a manual switch device.
The JINHENG series butterfly valve adopts an aluminum shell, which is lightweight yet sturdy. The valve plate is made of aluminum alloy material and 304/316 stainless steel material. There are multiple models to choose from, as well as manual handles, worm gears, cylinders, and electric drive modes. Easy to install, can use flange docking method or matching nozzle.
JINHENG food grade stainless steel butterfly valve, using precision machining and high polishing, is used in hygiene grade fields such as grain, food, feed, and pharmaceuticals.
Application industries: concrete, feed, grain, ceramic industry, plastic industry, glass industry, metallurgical industry, chemical and pharmaceutical industry, paper industry, mining machinery industry. The product is widely used for rough and fine control measurement of materials such as packaging, ingredients, and gas transportation
