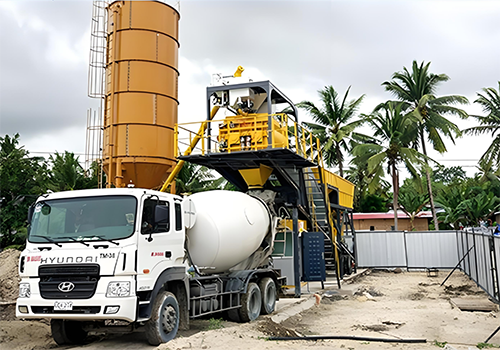

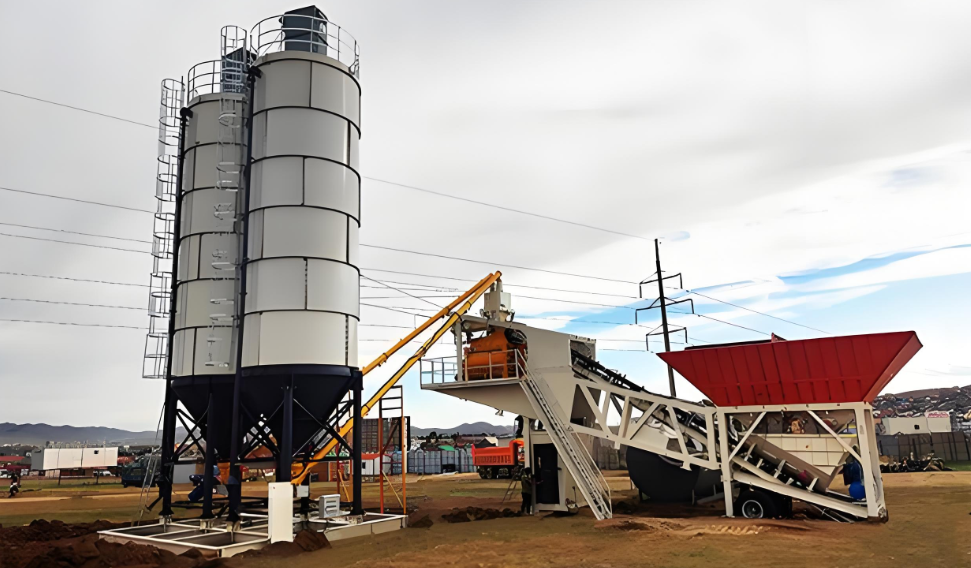

Mobile concrete batching plants

Model		YHZS50	YHZS75	YHZS100
Theoretical productivity(m³/h)		40	54	72
Mixer	Model	JS1000	JS1500	JS2000
	Discharge volume	1000L	1500L	2000L
	Aggregate  size	≤60mm		≤80mm
Batching station	Bin volume (m³)	10×4
Conveyor capacity of inclined belt conveyor(t/h)		400t/h		450t/h
Scale range & accuracy	Stone scale (kg)	(700-2000)±2%	(1000-3000)±2%	(1300-4000)±2%
	Sand scale (kg)
	Cement scale (kg)	(200-600)±1%	(300-900)±1%	(400-1200)±1%
	Water scale (kg)	(60-200)±1%	(100-300)±1%	(130-400)±1%
	Additivescale (kg)	(15-50)±1%
Discharge height (m)		4.05m		4.07m

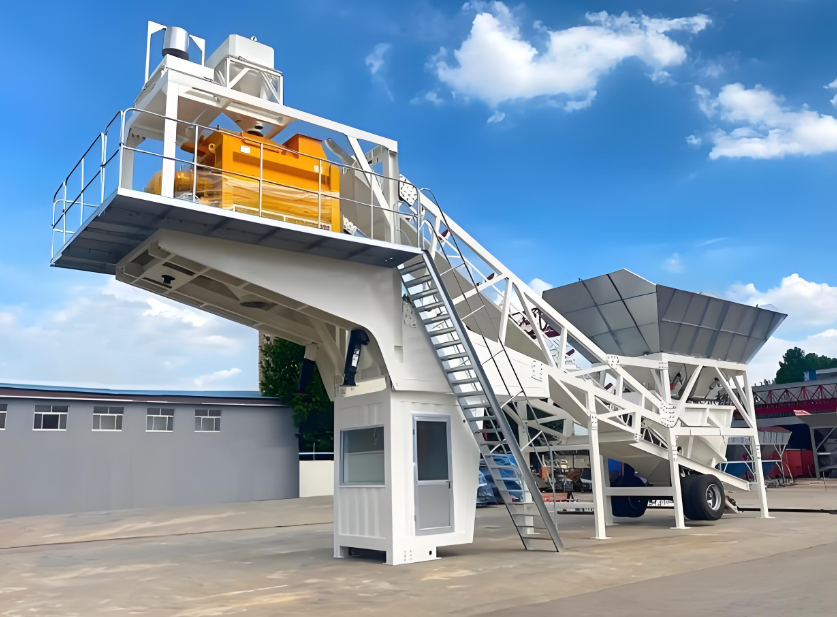

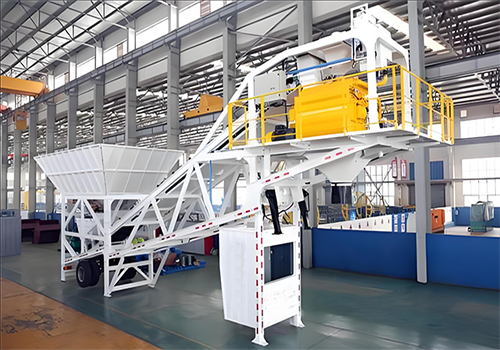

Strong production capacity and flexibility
Jinheng's mobile concrete mixing stations have a production capacity ranging from 30 cubic meters per hour to 100 cubic meters per hour, perfectly meeting the needs of various projects. The concrete delivery to mixer trucks is more convenient, significantly improving on-site construction efficiency. The Jinheng series stands out with its compact design, occupying minimal site space while also being easy to transport.

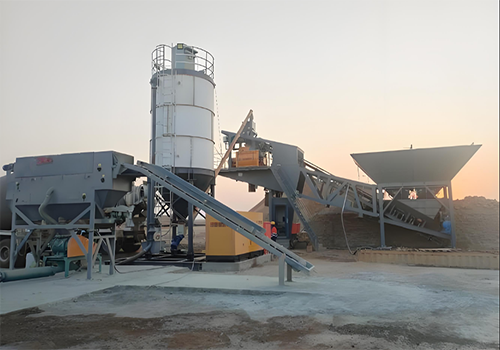

Integrated solution with built-in cement silo
Jinheng's mobile mixing stations can be equipped with a 30-ton capacity built-in cement silo. These integrated solutions enable concrete production without the need for external equipment, enhancing mobility. These models are easy to transport between different construction sites, saving manpower and time.

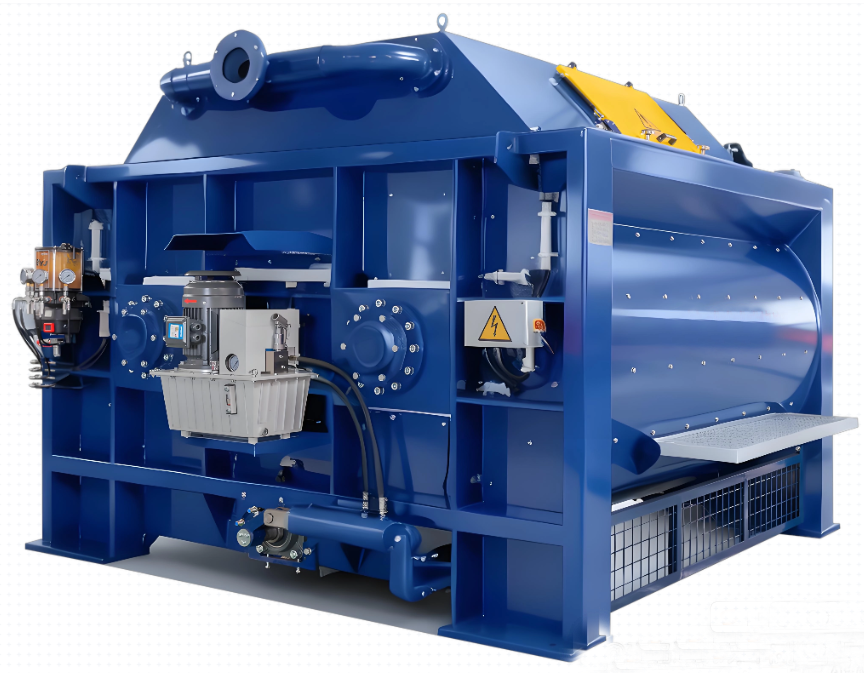

Multiple mixer options
Our mobile concrete mixing stations can be equipped with dual-shaft, pan, and planetary mixers. This versatility allows them to flexibly meet diverse application needs, such as the production of ready-mixed concrete, dry-mixed concrete, and precast concrete.

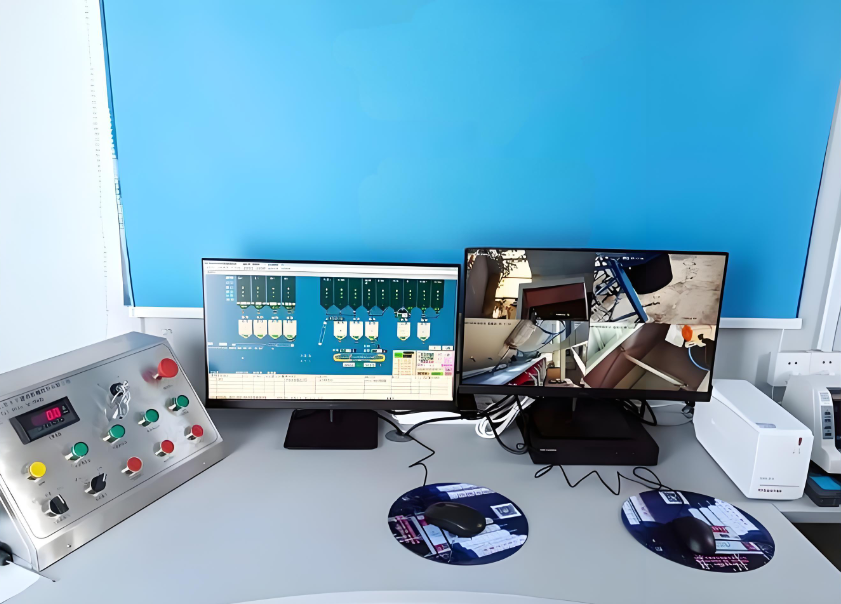

High-tech Control and Automation Systems
Jinheng's mobile concrete mixing station is equipped with electronic and electrical components from Siemens and Schneider. The advanced software system features a user-friendly interface and comprehensive functions, enabling effective management of the entire production process. These automated systems minimize operational errors and maximize production efficiency.

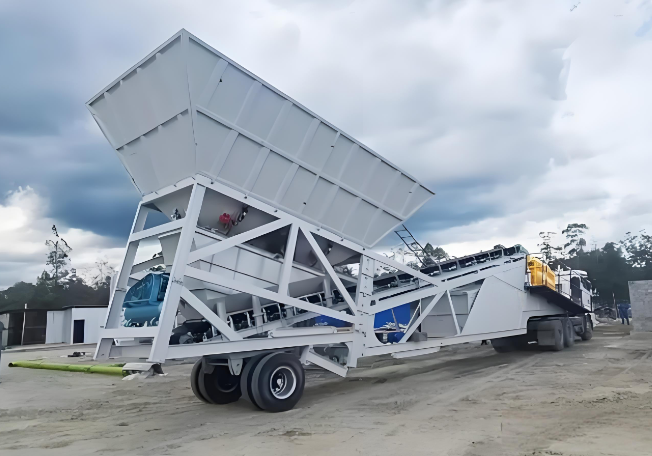

A system to minimize site infrastructure investment
When used in conjunction with a mobile aggregate pre-feed system, no loading ramp construction is required, thereby minimizing on-site infrastructure investment costs. These integrated systems can accelerate your workflow and reduce costs.

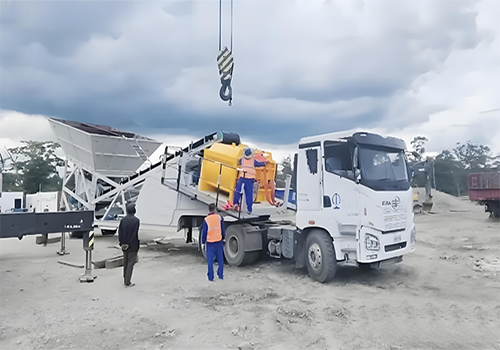

Design compliant with international transportation regulations
The overall dimensions of Jinheng's mobile concrete mixing station are designed to comply with international road transport regulations, ensuring that our mixing station can be easily transported between different construction sites and quickly installed.

Why choose Jinheng's mobile concrete mixing plant?

High performance: The mobile concrete mixing plant produced using high-quality materials and advanced technology can provide high performance even under the most challenging conditions.
Flexibility and portability: With a compact design, it can be easily transported and quickly installed between different locations.
Advanced automation technology: High tech control and automation systems minimize operational errors and optimize production processes.
Comprehensive solution: Built in cement silo and mobile aggregate pre feeding system can improve on-site efficiency and reduce costs.
Customer satisfaction: Putting customers at the center, providing high-quality services, and having a comprehensive after-sales support team to provide continuous support for your project.
Adopting Jinheng's mobile concrete mixing plant, moving towards success
Jinheng's mobile concrete mixing plant is an ideal solution for improving the efficiency and performance of construction projects. Whether it's a small project or a large infrastructure project, a mobile concrete mixing plant can meet all your needs. Its sturdy and durable structure ensures long-term stable operation even under harsh environmental conditions.
Environmentally sustainable solutions
We attach great importance to environmentally friendly production processes. Our mobile concrete mixing plant is equipped with energy-saving and environmentally friendly technologies. This not only reduces your operating costs, but also minimizes your environmental footprint to the greatest extent possible.
Training and support services
We provide comprehensive training and support services to meet the needs of our customers. Our technical team will guide you through the installation, maintenance, and operation process of the equipment. In addition, our after-sales support service can quickly and effectively solve any potential problems.
Reference projects and customer satisfaction
Jinheng's mobile concrete mixing plant has been successfully applied in many well-known projects worldwide. The positive feedback from customers further proves the quality and reliability of our products. Our reference projects fully demonstrate the excellent performance of our mixing plant in different application fields.
Advantages of Jinheng in future construction projects
Jinheng Mobile Concrete Mixing Plant will help your future construction projects stand out. Our innovative design, outstanding performance, and sturdy and durable structure will take your project to the next level. We will wholeheartedly provide you with the most suitable solution.

Here are some of our customization options. Our technical sales team can support you in assiting the appropriate layout and equipment to optimize your productivity and business.
1、Concrete recycling system integration
Are you still throwing away your concrete waste or faulty production? As the importance of environmental responsibility of businesses increases, certain standards are being introduced in production in order to leave a cleaner world to future generations. In addition, in today's world where production costs are gradually increasing, operational efficiency has become the most important heading of sustainable activities. With the JINHENG recycling unit, components such as aggregate, sand and water in concrete can be separated and reused in production.

---

2、Equipment and applications that ensure the most efficient operation in different climatic conditions.
Special reinforcement and applications for quality and uninterrupted concrete production in harsh winter conditions: Steam pipes placed inside the aggregate bunker Complete enclosure of the main unit with 40 mm thick insulated panels Complete covering of the bottom of the aggregate bunker with 40 mm thick insulated panels Retractable electric gates on the aggregate bunker Steam generator (high performance steam generators that can run on diesel, natural gas or both, selected according to the plant capacity)

---

3、Concrete batching plant coating applications
The top and sides of the aggregate bunker can be covered with trapezoidal sheets to both protect from environmental influences (rain, snow, wind, etc.) and to minimize the impact of dusting on the environment. The four sides and top of the main unit, which contains the mixer, cement-water-additive scales and aggregate waiting bunker, can be covered with trapezoidal sheets. In this way, the main unit can be protected from environmental influences (rain, snow, wind, etc.).

---

4、Fiber feed system integration
You can improve the versatile production capacity of your batching plant thanks to the fiber feeding system that automatically feeds and doses steel or polyester concrete fibers used in the production of special quality concrete and is integrated with the plant automation.

---

5、DISCOVER MORE
The plant you want with dozens of additional options-
HYDRONIX brand Microwave moisture meter for aggregate bunker sand compartment. It precisely measures the moisture in the sand and ensures that less water and complementary sand is added by the amount of moisture measured by the automatic system.- Aggregate Bunker bunker grates to be placed on top of the bunker with 100x 100 mm mesh width to prevent large stones from entering and damaging the system- High pressure automatic cleaning system for mixers- Mixer working monitoring system-Mixer safety interlock can be added for more safety during maintenance. With this system consisting of two switches, the plant cannot be started unless the maintenance person stops the system completely and takes one switch on himself, preventing possible accidents.
