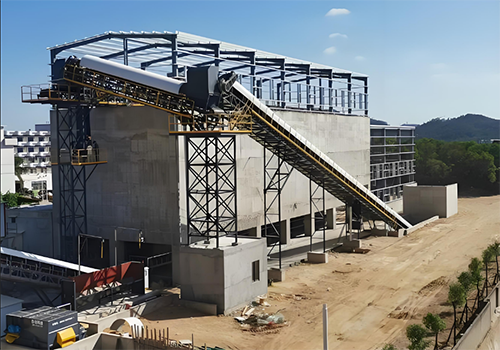

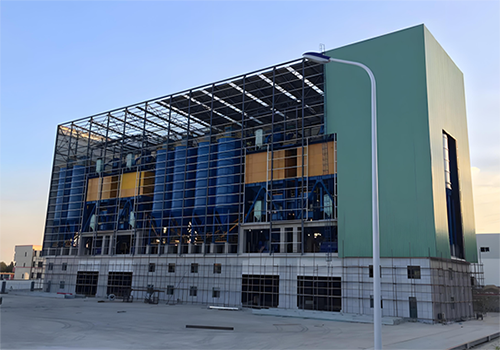

Tower concrete batching plants

Model		HLS120	HLS180	HLS200	HLS225	HLS250	HLS300
Theoretical productivity(m³/h)		100	150	200	225	250	300
Mixer	Model	JS2000	JS3000	JS4500	JS4500	JS5000	JS6000
	Discharge volume (L)	2000	3000	4500	4500	5000	6000
	Aggregate size (mm)	≤80
Aggregate bin on main tower	Bin volume (m³)	30×6(Or 45×4)		50×6(Or 75×4)
Conveyor capacity of inclined belt conveyor(t/h)		500	600				900
Scale range & accuracy	Stone scale (kg)	(800-2400)±2%	(1200-3600)±2%	(1600-4800)±2%	(1800-5400)±2%	(2000-6000)±2%	(2400-7200)±2%
	Sand scale (kg)	(500-1600)±2%	(800-2400)±2%	(1050-3200)±2%	(1200-3600)±2%	(1300-4000)±2%	(1600-4800)±2%
	Cement scale (kg)	(400-1200)±1%	(600-1800)±1%	(800-2400)±1%	(900-2700)±1%	(1000-3000)±1%	(1200-3600)±1%
	Fly ash scale (kg)	(130-400)±1%	(200-600)±1%	(250-800)±1%	(300-900)±1%	(300-1000)±1%	(400-1200)±1%
	Water scale (kg)	(150-500)±1%	(250-800)±1%	(400-1200)±1%
	Additivescale (kg)	(15-50)±1%	(25-80)±1%	(40-120)±1%			(60-180)±1%
Discharge height (m)		4.1

• There are 4 or 6 aggregate silos upstairs, which saves time waiting for transportation during the mixing process and improves mixing efficiency. The upstairs rotating material sorting system has a long service life and is suitable for various production processes such as mortar wrapping and secondary feeding.
• Adopting a pulse bag filter, the dust removal efficiency can reach 99.9%, and the maintenance cost is low; Large scale fans actively extract air and remove dust, which can balance the pressure of various systems in the main building, ensuring measurement accuracy and cutting speed.

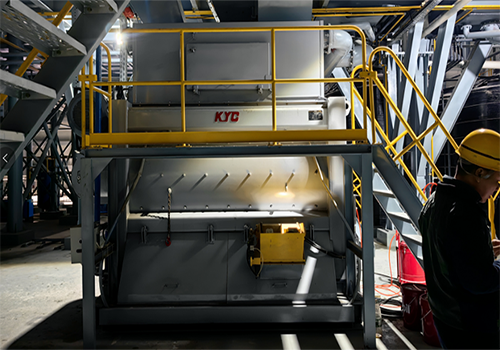

• The mixing efficiency of twin-screw belt mixer is 15% higher than that of ordinary mixer. The average strength of concrete has increased by 10%. In terms of energy consumption, it saves 20% compared to traditional forced mixing. It can produce any type of concrete (precast concrete, CVC, ready mixed concrete).
• The high-precision measuring system can accurately weigh cement, powder, additives, and sand and gravel materials, effectively ensuring the quality and safety of concrete (all weighing is equipped with a secondary weighing system).
• Fully galvanized heavy-duty steel structures can achieve extremely high durability, safe transportation, and continuous long-term operation. Minimize the vibration of the scale as much as possible to achieve sensitive weighing.

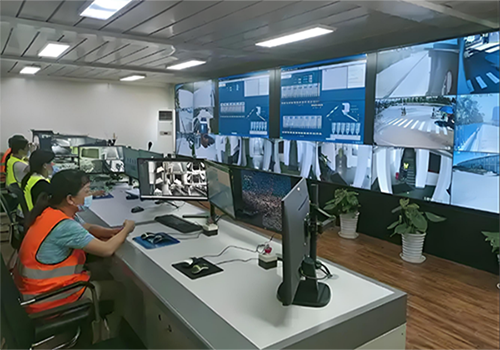

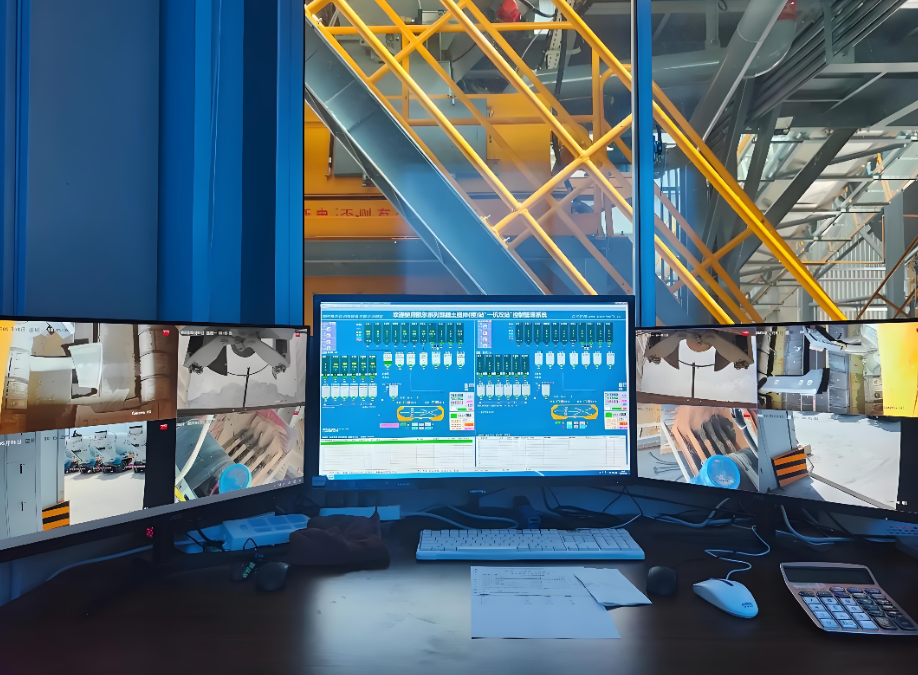

• The porting of control software does not require installation and can be directly copied and used, reducing maintenance difficulty, lowering maintenance costs, shortening maintenance time, and quickly meeting transformation needs.

Since 1998, Jinheng Machinery has been dedicated to the design and manufacturing of high-quality concrete mixing plants, covering an area of approximately 80000 square meters and employing 260 workers. Obtained CE, SGS, and ISO certifications successively.

The heavy-duty steel structure design, multi-layer anti-corrosion treatment, and global procurement of accessories ensure the durability and longevity of the mixing plant. It has been exported to over 80 countries in Europe, America, Asia, and Africa.

---

Concrete mixer: BHS (Germany)                                                   Gearbox: Flender (Germany)                                                     Motor: ABB/(Switzerland)                                                       Spiral conveyor/butterfly valve/vibration motor: WAM (Italy)

---

Weighing sensor: Mettler Toledo (USA)                                        Bearing: SKF (Sweden)                                                              Cylinder/solenoid valve: AIRTAC (Taiwan)                                Electrical components: Schneider (France)

---

We have designed multiple models to meet the needs of different projects and clients
                                                                                                                                           1. Quick loading, container assembled concrete batching plant
                                                                                                                                           2. Foundation free concrete batching plant
                                                                                                                                           3. Compact concrete batching plant
                                                                                                                                           4. Mobile concrete batching plant
                                                                                                                                           5. Tower type concrete batching plant
                                                                                                                                           6. Precast concrete batching plant
                                                                                                                                           7. UHPC batching plant
                                                                                                                                           8. Large smart concrete batching plant
                                                                                                                                           9. Dry powder mortar mixing plant
                                                                                                                                          10. Small cement production line (new product)
                                                                                                                       Please contact us to learn about the most suitable concrete mixing plant solution for your needs.

Here are some of our customization options. Our technical sales team can support you in assiting the appropriate layout and equipment to optimize your productivity and business.
1、Concrete recycling system integration
Are you still throwing away your concrete waste or faulty production? As the importance of environmental responsibility of businesses increases, certain standards are being introduced in production in order to leave a cleaner world to future generations. In addition, in today's world where production costs are gradually increasing, operational efficiency has become the most important heading of sustainable activities. With the JINHENG recycling unit, components such as aggregate, sand and water in concrete can be separated and reused in production.

---

2、Equipment and applications that ensure the most efficient operation in different climatic conditions.
Special reinforcement and applications for quality and uninterrupted concrete production in harsh winter conditions: Steam pipes placed inside the aggregate bunker Complete enclosure of the main unit with 40 mm thick insulated panels Complete covering of the bottom of the aggregate bunker with 40 mm thick insulated panels Retractable electric gates on the aggregate bunker Steam generator (high performance steam generators that can run on diesel, natural gas or both, selected according to the plant capacity)

---

3、Concrete batching plant coating applications
The top and sides of the aggregate bunker can be covered with trapezoidal sheets to both protect from environmental influences (rain, snow, wind, etc.) and to minimize the impact of dusting on the environment. The four sides and top of the main unit, which contains the mixer, cement-water-additive scales and aggregate waiting bunker, can be covered with trapezoidal sheets. In this way, the main unit can be protected from environmental influences (rain, snow, wind, etc.).

---

4、Fiber feed system integration
You can improve the versatile production capacity of your batching plant thanks to the fiber feeding system that automatically feeds and doses steel or polyester concrete fibers used in the production of special quality concrete and is integrated with the plant automation.

---

5、DISCOVER MORE
The plant you want with dozens of additional options-
HYDRONIX brand Microwave moisture meter for aggregate bunker sand compartment. It precisely measures the moisture in the sand and ensures that less water and complementary sand is added by the amount of moisture measured by the automatic system.- Aggregate Bunker bunker grates to be placed on top of the bunker with 100x 100 mm mesh width to prevent large stones from entering and damaging the system- High pressure automatic cleaning system for mixers- Mixer working monitoring system-Mixer safety interlock can be added for more safety during maintenance. With this system consisting of two switches, the plant cannot be started unless the maintenance person stops the system completely and takes one switch on himself, preventing possible accidents.
